LiFePo4 Battery 3.2V 105Ah High Rate 3C 300Ah discharge rate FOR
POWER STATION, EV CAR
Golf cart, UPS,AGV, Forklift, Energy Storage System WITH UL CE IEC62133 CB MSDS CERTIFICATION
Feature of the cells:

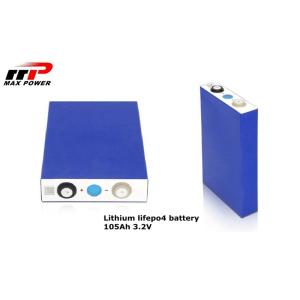

LF105Ah 3.2V LIFePo4 Battery Cell Specification:
| NO. | Item | General Parameter | REMARK | |
| 1 | Typical Capacity | 106.5 Ah@ 1.0C discharge | Discharge current 1.0C with 2.5V cut off. (25±2)℃ | |
| 2 | Typical Voltage | 3.2V | ||
| 3 | AC Iedance Resistance(1khz) | ≤0.5mΩ | ||
| 4 | Minimum Capacity | 105.0 Ah @ 1.0C discharge | ||
| 5 | standard charge/discharge | charge/dicharge current | 0.5C/0.5C | Under 0.5CA cc-discharge |
| charge/dicharge cut-off voltage | 3.65V/2.5V | |||
| 7 | Max Charge Current | 1C | The maximum charge current of the battery does not exceed 1C under 0℃~45℃. | |
| 8 | Cut-off Voltage | 3.65V | ||
| 9 | Max Discharge Current | 3C | ||
| 10 | Cut-off Voltage | 2.5V | ||
| 11 | Recommend operation teerature | 10%-90% | N.A. | |
| 12 | charging teerature | 0℃~55℃ | ||
| 13 | discharge temerature | -20℃~55℃ | ||
| 14 | storage temerature | short period | -20℃~45℃ | N.A. |
| 15 | long period(1 year) | 0℃~35℃ | ||
| 16 | storage temerature | <95% | ||
| 17 | monthly self-discharge | ≤3%/month | (25±2)℃,30%-50% SOC storage | |


Discharge Rate of the battery:
The similar model we have:
| Models | Voltage(V) | Standard (Ah) | Inner Resistance (mΩ) | Weight (g) | Hight (mm) | Width (mm) | Thickness (mm) |
| LF50K | 3.2 | 50 | 0.7 | 1395±50 | 185±0.5 | 135.3±0.5 | 29.3±0.7 |
| LF50F | 3.2 | 50 | 2 | 1050±100 | 129.8±0.5 | 148.3±0.3 | 26.7±1.0 |
| LF80 | 3.2 | 82 | 0.5 | 1680±50 | 170.5±0.5 | 130.3±0.3 | 36.7±0.5 |
| LF90K | 3.2 | 90 | 0.5 | 1994±50 | 200.5±0.5 | 130.3±0.3 | 36.7±0.5 |
| LF105 | 3.2 | 105 | 0.5 | 1980±100 | 200.5±0.5 | 130.3±0.3 | 36.7±0.5 |
| LF230 | 3.2 | 230 | 0.25 | 4110±100 | 207.0±0.5 | 173.9±0.5 | 54.0±1.0 |
| LF280N | 3.2 | 280 | 0.25 | 5300±300 | 204.8±0.5 | 173.7±0.3 | 71.5±0.5 |

The battery pack can be customised like following:



|
