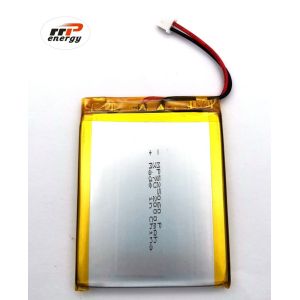

525056 2000mah 3.7V Li polymer battery for medical device bluetooth
pos machie With KC CB UL
- It is high energy density lithium polymer battery pack
- Thinner design &a; lighter weight with aluminum-plastic coosite
- More than 500 cycles of charging &a; discharging life
- Enhanced safety performance with Japan/Taiwan IC &a; MOS
protectors
- Easy to assemble with mounted connectors (Molex, Tyco and so on)
- OEM &a; ODM services for special size of lithium polymer
battery
- Rigorous testing to ensure the quality of all lithium polymer
batteries
1. Products info and draw.
2. Cell specification and safty performance.
| No. | Items | Specifications | Remark |
| 1 | Nominal Capacity | 2000mAh | 0.2C Standard discharge |
| 2 | Minimum Capacity | 2000mAh | |
| 3 | Nominal Voltage | 3.7V | Mean Operation Voltage |
| 4 | Delivery voltage | 3.7~3.9V | Within 10 days from Factory |
| 5 | Charge Voltage | 4.2V±0.03V | By standard charge method |
| 6 | Standard charging method | 0.2C constant current,4.2V constant voltage charge to 4.2V,continue
charging till current decline to ≤0.01C | 0.2C CC 4.2V CV charge to the current≤0.01C |
| 7 | Charge current | 0.2C | 400mA | Standard charge, charge time:6.5h(Ref) |
| 0.5C | 1000mA | Rapid Charge, charge time:2.5h(Ref) |
| 8 | Standard discharging method | 0.2C constant current discharge to 2.75V | 0.2C CC discharge to 3.0V |
| 9 | Cell Internal Iedance | ≤80mΩ | Internal resistance measured at AC 1KHZ after 50% charge |
| 10 | Maximum charge current | 0.5C | For continuous charging mod |
| 11 | Peak discharge current | 1C | Continuous discharge current 1C |
| 12 | Operation Teerature and relative humidity Range | Charge | 0~45℃ 60±25%R.H. | Charge at a very low teerature such as blew 0℃,will be get a lower
capacity and reduce cycle life of the battery |
| Discharge | -20~60℃ 60±25%R.H. |
| 13 | Storage teerature for a long time | -20~25℃ | | Do not storage exceed half year. Must charge once when storage for
half year. Must charge the battery which with protect circuit when
storage for three months. |
| 60±25%R.H. | |
3. More PIC of 525060 battery.
The customized connectors we normally use:
The packing of the polymer battery:
The application of the polymer battery:
(For bluetooth, headphone, pos machine, medical device, mobile,
powerbank, GPS,iwatch....)
Waranty for customer:
We give 1 year warranty. If the battery has problem coz of our
quality issue, We will give replacement any time.
Q&a;A:
1. Q: How long to make the cargos?
A: Need 30day around if we dont have stock of that model. Coz need
strictly test and high teerature,high voltage life aging as well in
every single pc. That will takes a fixed date.
2. Q:How to start the cooperate?
A: Lets start with the sale orders. In 3-5days will be ready the
sales, then you test.We make the standard according
the data sheet which we give.Once you confirm the quality, we can
talk for further.
3. Q: What will be the packing?
A: We are using blister pallet packing in each battery pack. and
then fold all packing in one ctn.
4. Q: Can the connectors be customized?
A: Yes, we can choose the right connector according your
requirement.Or help to match your device
.
5 Q: Is OEM/ODM battery pack available?
A: Yes, OEM/ODM battery packs are warmly welcome. Professional
engineers provide technical support.
6 Q: What information do you need to make a customized battery
pack?
A: We need the details below:
1. Size of the battery pack you need in mm.
2. Capacity of the Battery pack.
3. Voltage of the battery pack.
4. Max discharge current.
5. Cable and connector types you need.
6. Casing and Terminals if required.
7. Any protection circuits you may need.
7 Q: How do you arrange shipment for batteries?
A: We have long-standing forwarder partner who arranges shipments
to all over the world. Although batteries are categorized as
dangerous goods, you should rest assured that your cargo will be
delivered through our experienced shipping partner(s).
8 Q: Do you have the documents required for battery shipments?
A: Yes, we have MSDS, UN38.3, etc. and other special files needed
for shipments to some regions can also be secured.
For more info please contact me freely, wish my 13years experience
in battery area can help you in your project.
