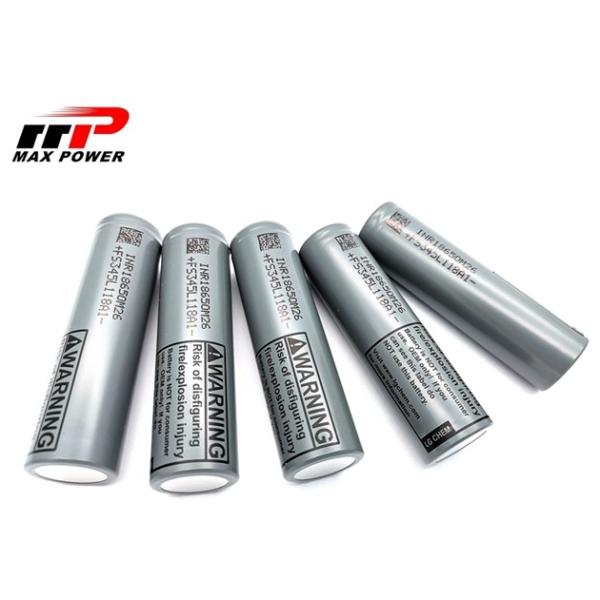

100% Original MP INR18650-M26 3.7V 2600mAh Rechargeable Li-ion
Battery for electric vacuum cleaner with max 10Ah discharge rate...
Specification:
| NO | Item | Condition/Note | Specification |
| 1 | Nominal discharge capacity | Std. charge / discharge | Nominal 2,600 mAh (Cnom) |
| Minimum 2,500 mAh (Cmin) |
| 2 | Nominal voltage | Average for Std. discharge | 3.6V |
| 3 | Standard charge | Constant current(1,250mA) | 0.5C |
| Constant voltage | 4.2V |
| End condition(Cut off) | 50mA |
| 4 | Max. Charge Voltage | | 4.2V |
| 5 | Max. Charge Current | | 1.0C(2,500mA) |
| 6 | Standard Discharge | Constant current | 0.2C (500mA) |
| End voltage(Cut off) | 2.75V |
| 7 | Max. Discharge Current | | 10A |
| 8 | Max. Teerature Limit | Max. discharge current at RT | 75℃ |
| 9 | Diameter | Diameter is defined as the largest data value measured on the “A”
area of a cylindrical cell. | Max. 18.4 mm |
| Height : 65.0 ± 0.2 mm ( Max. 65.2 mm ) |
| 10 | Weight | Approx. | 44.0 g |
| 11 | Operating teerature | Charge | 0 ~ 45℃ |
| Discharge | -20 ~ 60℃ |
| 12 | Storage teerature(Recovery 90% after storage) | 1 year | -20~25℃(1*) |
| 3 months | -20~45℃(1*) |
| 1 month | -20~60℃(1*) |
Diameter : Max. 18.4 mm
Diameter is defined as the largest data value measured on the “A”
area of a cylindrical cell.
Height : 65.0 ± 0.2 mm ( Max. 65.2 mm )
Teerature dependence of charge capacity:
Capacity coarison at each teerature, measured with discharge
constant current 10A and 2.5V cut-off
after the standard charge is as follows.
| | Charge teerature | Discharge teerature |
| 0℃ | 5℃ | 25℃ | 45℃ | 50℃ | 25℃ |
| Relative capacity | 80% | 90% | 100% | 95% | 95% | |
More pics of the INR18650 M26
Packing Info.
1. All goods are 100% inspected and packed very well.
2. standard industrial use packing; 100pcs/box,2boxes/ctn
What our battery suitable for?
For power tools, vacuum cleaner....
Delivery:
Air or Sea transportation are available.
For sales:delivery within 1-2 days.
For formal order: Within 100k pcs, 7days around; 100-500k pcs, 10
days around; over 500k pcs, 15 days around.
Exclusion of Liability
The warranty shall no cover defects caused by normal wear and tear,
inadequate maintenance, handling, storage
faulty repair, modification to the battery or pack by a third party
other than MPC ore MPC’s agent approved by MPC,
failure to observe the product specification provided herein or
iroper use or installation, include but not limited to
the following :
-. Damage during transport or storage
-. Incorrect installation of battery into pack or maintenance
-. Use of battery or pack in inappropriate environment
-. Iroper, inadequate, or incorrect charge, discharge or production
circuit
Other than stipulated herein
-. Incorrect use or inappropriate use
-. Insufficient ventilation
-. Ignoring applicable safety warning and instructions
-. Altering or atteted repairs by unauthorized personnel
-. In case of force majeure (Ex. Lightening, storm, flood, fire,
earthquake, etc)
Related Iort cell list:
| BRAND | size/capacity/rate | Colors | Rate |
| 18650系列 | PVC tube | continue dicharge |
| SAMSUNG | 18650-22PM 10A/5C | purple | mid-rate cell |
| 18650-26JM 2C | pink purple | capacity cell |
| 18650-26HM 2C | pink purple | capacity cell |
| 18650-29ET 10A/3.5C | blue | mid-rate cell |
| 18650-35ET 10A/3C | purple | mid-rate cell |
| 18650-25RM 20A/8C | green | high rate cell |
| 18650-30Q 15A | purple | high rate cell |
| MP | B4L-2600mAh | light grey | capacity cell |
| MF1-2200mAh 10A/5C | purple | mid-rate cell |
| F1L-3350mAh | purple | capacity cell |
| M26-2600mAh 10A/3.9C | purple | mid-rate cell |
| MG1-2600mAh 10A/3.4C | dark red | mid-rate cell |
| MH1-3200mAh 10A/3C | blue | mid-rate cell |
| MJ1-3500mAh 10A/3C | green | mid-rate cell |
| HB3-1500mAh 22A/14C | grey | high rate cell |
| SANYO | 16650ZTA-2500mAh | purple | capacity cell |
| 18650AA-2200mAh | red | mid-rate cell |
| 18650NSX-2600mAh 20A/8C | red | high rate cell |
| 18650ZY-2600mAh | red | capacity cell |
| 18650ZTA-3000mAh | red | capacity cell |
| 18650BF-3400mAh | red | capacity cell |
| 18650GA-3500mAh | red | mid-rate cell |
| PANASONIC | 18650PF-2900mAh 10A | green | mid-rate cell |
| 18650BD-3200mAh-8A 中性 | grey | mid-rate cell |
| 18650BD-3200mAh-8A 印字 | grey | mid-rate cell |
| 18650BM-3200mAh-3.87A | green | capacity cell |
| 18500A-2030mAh | green | mid-rate cell |
| 18650B-3400mAh 4.87A | green | capacity cell |
| SONY | 索尼VC3-1900mAh 18A/10C | green | high rate cell |
| 18650VT3-1600mAh 20A/12.5C | green | high rate cell |
| Bostoon | Bostoon 5300 | green | mid-rate cell |
For more info. Please feel free to contact me in any way below,
hope 12years of battery area working experance can help you out.
