High Capacity NIMH Duracell Rechargeable Batteries 1.2V Flat Top

Green Energy with high capacity density

Accept the customized battery Pack

offer the power solution with OEM,ODM Battery project Design

NIMH Cells with real capacity and long service life

100% in house testing with UN38.3,MSDS,Guarantee Letter

logistic Service : Sea shipment , Air Shipment , Door To Door Service

Direct Factory Price with 2 years quality warantee

Welcome customer for factory visit and audit the battery line

Application :

Cars Trucks Boat Jet Skis Motorcycles Golf Carts Caravans Forklifts

Mobile Phones Cordless Telephone GPS & Navigation Systems

Laptops/Notebooks PDA and Pocket PC

Digital/Video Camera Cordless Drills

Home Alarms Remote Controls

Watches Lawn Mower Cordless Vacuum Cleaners Torches

Toys and Hobbies Wheelchair/Mobility Scooter Hearing Aid

USB Wireless Modem Surveying Equiptment Baby Monitor Wireless Headset/Bluetooth

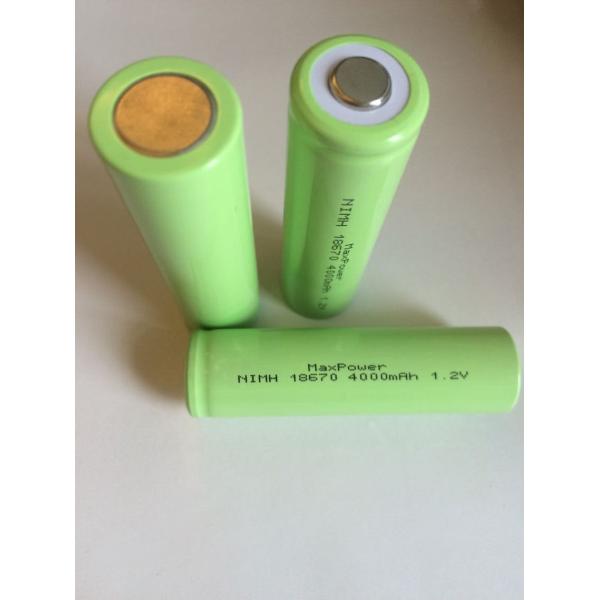

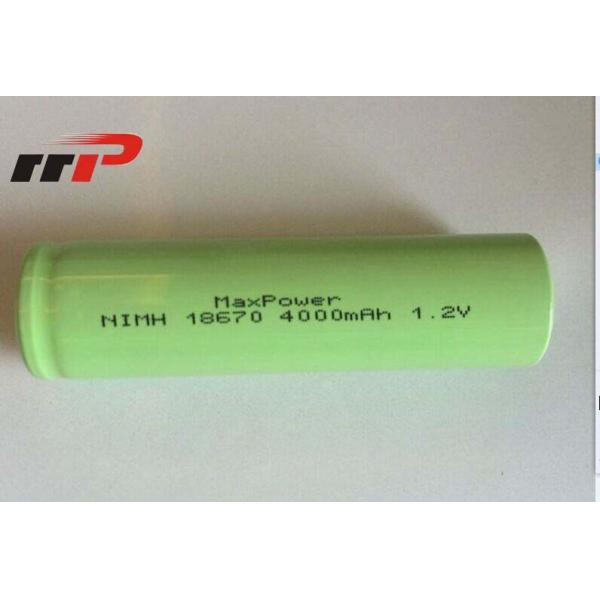

18670 4000mAh Cell Details as below :

type:Rechargeable Nickel Metal Hydride
Cylindrical Cell
Nominal Dimension :Φ=18.5mm
(with sleeve) H=67.0mm
Applications: Recommended discharge current
400mA to 4000mA
Nominal Voltage: 1.2V
Capacity:Minimum: 4000mAh
Typical: 4030mAh
When discharged at 0.2C to 1.0V at 20℃
Charging Condition: 400mA for 16 hrs at 20℃
Fast Charge:2000mA (0.5C)
Charge termination control recommended
Control parameters: △V: 5mV
DT/dt=0.8℃/min (0.5C)
Tmax: 45~55℃
Time: 105% nominal input
For reference only
Service life: ≥300 cycles (IEC standard)
Continuous: 400mA maximum current for 48 hrs
Overcharge No conspicuous deformation
And/or leakage
Weight: about 61.0g
Internal Resistance: Max 20mΩ upon fully charged
at1000HZ
Max. Charging Voltage: 1.5V at 400mA charging
Ambient Temperature: Standard charging: 0 to 45℃
Fast charging: 10 to 45℃
Discharging : -20 to 60℃
Storage : -20 to 35℃
