14430 3.7v 600mAh 10C 6000mA High power discharge Rechargeable
Lithium Ion Battery,
Max discharge 15C 9000mA With UL KC CB PSE
Feature:
- High capacity, advanced tecnical process producing by auto machine,
same voltage and low inner resistance.
- Very good performance to do industial pack.
- High energy density and longer working time.
- Light weight with small size. D14mm*H43mm
- No memory effect, good discharge ability and high load and resist
high teerature
- Pollution free for environmental protection
- Good anti-explosion protection and circuit protection inside.
- With UL, CE, KC,CB, PSE certification.

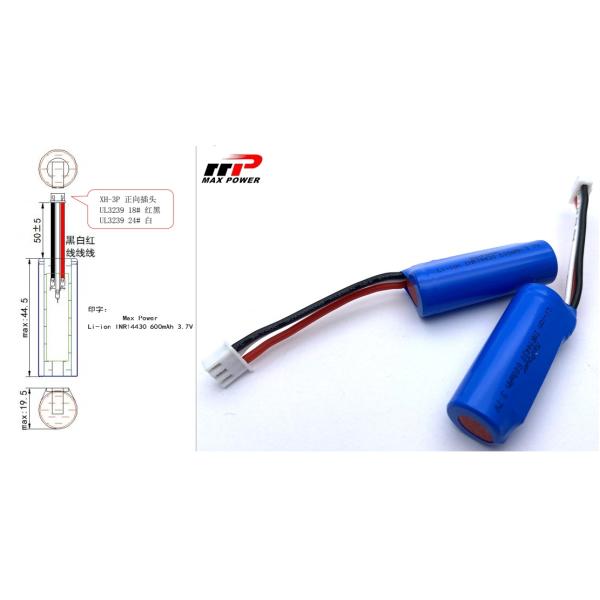

IMR14430HP draw info.:
Specification:
| NO. | Item | Specifications |
| 1 | Typical Capacity | 600mAh @ 0.2C Discharge |
| Minimum capacity | 580mAh@ 0.2C Discharge |
| 2 | Nominal voltage | 3.7V |
| 3 | Standard Charge | CC/CV,0.2C5A, 4.20V |
| 4 | Standard Discharge | CC,0.2C5A, 3.00V |
| 5 | End-of-charge Voltage | 4.20±0.05V |
| 6 | End-of-charge Current | 0.02C5A (At CV mode) |
| 7 | End-of-discharge Voltage | 3.00 V |
| 8 | Charging Time | 8.0hours(standard charge) |
| 9 | Quick Charge Current | 600mA (1.0C5 rate) |
| 10 | Quick Discharge Current | 6000mA (10.0C5 rate) |
| 11 | Max continuous Discharge Current | 9000mA (15.0C5 rate) |
| 12 | Initial impedence | 70mΩ |
| 13 | Weight | Approx(约):25g |
| Charge temperature | Discharge teerature |
| 25℃ | -10℃ | 0℃ | 15℃ | 25℃ | 40℃ |
| Relative Capacity | 50% | 80% | 90% | 100% | 100% |
Application:
1. Electronic cigarettes:
14430 lithium batteries have become an ideal power source choice
for electronic cigarettes due to their high energy density, stable
voltage output, and high current discharge capacity. Product
certifications such as ROHS, CE, UN38.3 ensure the safety and
environmental friendliness of batteries.
2.Mining lamps and safety alarms:
In mining lamps, safety alarms, and other equipment, the 14430
lithium battery can provide stable and reliable energy support.
Long cycle service life, even after 500 consecutive charges and
discharges, the battery capacity is still not less than 85% of the
rated capacity.
3.In medical devices, the stability and safety of batteries are crucial. 14430 lithium
batteries can meet these requirements and provide long-lasting
power for medical devices.
4.Other electronic digital products:
In addition to the above applications, 14430 lithium batteries are
also widely used in various electronic and digital products such as
mobile power supplies, security equipment, electric tools,
instruments, drones and meters.
5.Applications in extreme environments:
Some special models of 14430 lithium batteries, have excellent
temperature resistance and can operate normally in environments
ranging from -20 ℃ to 60 ℃, making it an ideal choice for portable
devices in extreme environments.
Special customization requirements:
Due to its standardized size and easy customization
characteristics, 14430 lithium batteries are also commonly used in
some customized devices that require special sizes and
capacities.The 3.7V high current discharge lithium-ion battery of
14430 has a wide range of applications in various electronic
digital products, such as electronic cigarettes, mining lamps,
safety alarms, medical devices, etc., due to its high energy
density, stable voltage output, and high current discharge
capacity. Meanwhile, its excellent temperature resistance and
customizability also enable it to meet special environments and
customization needs.
OEM service:
NOTE:
1.1 Standard Charge
Unless otherwise specified, “Standard Charge” shall consist of
charging at constant current of 1,075mA.
The cell shall then be charged at constant voltage of 4.2V while
tapering the charge current. Charging
shall be terminated when the charging current has tapered to 50mA.
For test purposes, charging shall be
performed at 25ºC ± 2ºC.
1.2 Standard Discharge
“Standard Discharge” shall consist of discharging at a constant
current of 600mA to 2.75V. Discharging is
to be performed at 25 ºC ± 2 ºC unless otherwise noted (such as
capacity versus teerature).
More models of high drain high discharge high power battery cell
list:
| Discharge rate | MODEL | CAPACITY(mAh) | VOLTAGE(V) | SIZE(MM) |
| 10-20C | 26650HP | 3400 | 3.7 | 26.0 X 65.2 |
| 22650HP | 2000 | 3.7 | 22.0 X 65.2 |
| 22430HP | 1300 | 3.7 | 22.0 X 65.2 |
| 18650HP | 1500 | 3.7 | 18.0 X 65.2 |
| 18650HP | 1300 | 3.7 | 18.0 X 65.2 |
| 18500HP | 1100 | 3.7 | 18.0 X 50.2 |
| 18350HP | 600 | 3.7 | 18.0 X 35.0 |
| 18350HP | 700 | 3.7 | 18.0 X 35.0 |
| 16500HP | 800 | 3.7 | 16.8 X 50.2 |
| 16340HP | 600 | 3.7 | 16.8 X 34.0 |
| 17500HP | 850 | 3.7 | 17.0*50.0 |
| 17335HP | 700 | 3.7 | 17.0*33.5 |
| 14500HP | 650 | 3.7 | 13.9 X 50.2 |
Packing Info.
1. All goods are 100% inspected and packed very well.
2. standard industrial use packing; 100pcs/box,4boxes/ctn
Delivery:
Air or Sea transportation are available.
For sales:delivery within 1-2 days.
For formal order: Within 100k pcs, 7days around; 100-500k pcs, 10
days around; over 500k pcs, 15 days around.
Battery Delivery DG Code: UN3480 IMO Class : 9
Garrantee:
Our coany garrantee for 1 year.
For more info. Please feel free to contact me in any way below,
hope 13years of battery area working experance can help you out.
