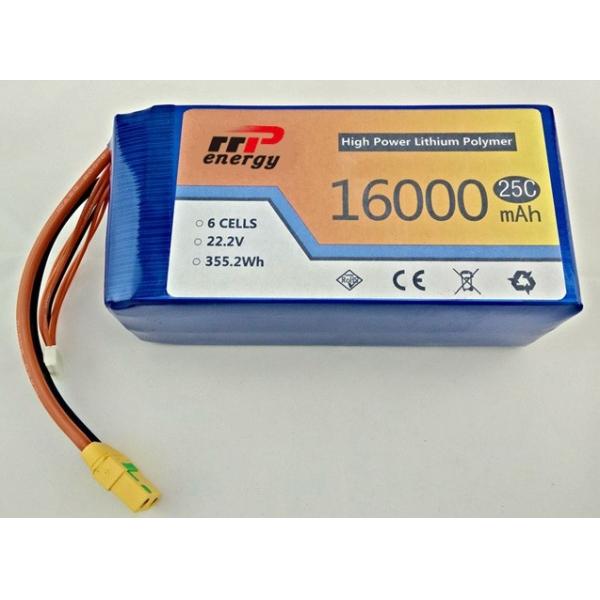

6S1P 16000mAh 22.2V 355.2watt li-polymer battery pack for UAV 25c
discharge high rate
with CE , CB certification
This polymer battery packs are very polular using in kinds of
unmanned aerial echicle(UAV) market.
Such as Dji S1000, Zerotech E-EPIC, E1100-V2 and other 6-axis, 8-axis
heavy-duty aircraft.
1. The Specification is like following:
| Item | Specification | Remark |
| 1 | Nominal Capacity | 16000mAh | 0.2c discharge |
| 2 | Minimum. Capacity | 15680mAh | 0.2c discharge |
| 3 | Nominal Voltage | 22.2V | |
| 4 | Charge Voltage | 25.2+/-0.12V | |
| 5 | Charge Current | Standard charge : | 0.5C(8000mA) |
| Rapid charge : | 1C(16 A) |
| 6 | Charging Time | Standard charge : | 3.0 hours(Ref.) |
| Rapid charge : | 2.0 hours(Ref.) |
| 7 | Max. charge current | 1.0C(16A) | |
| 8 | Cont.. Discharge Current | 25C(400A) | ≤ 60 S |
| 9 | Max. Discharge Current | 30C(480A) | ≤ 1 S |
| 10 | Cutoff Voltage | 18.0V | |
| 11 | Resistance | ≤10.0mΩ | 1kHz AC Method |
| 12 | Weight (Approx.) | 2120g | |
| 13 | Dimensions(T.W.H.) | Thickness: 67 max mm | |
| Width: 87 max mm |
| Length: 181 max mm |
| 14 | Operating Teerature | Charge: 0-45 ℃ | |
| Discharge: 0 ~ 45℃ |
| 15 | Storage Teerature | Short period( less than 1month) | -10℃~35℃ |
| Long period( more than 1month) | 0℃~25℃ |
2. The charging plug is JST-XHR-7P Revise 22#65mm.
The dicharge plug is XT90 10# 120mm silicon soft cable.
We give all solution of pins on your UAV products.
WARRANTY:
We give 6months garrantee for our battery pack. If it has problem
in using, Please give right evidence and we will
give replacement.
Mention: Human damage is not included, such as over charge and over
discharge.
Damage situation(using in wrong way):
1. Use in very high teerature long time.
2. Drop it into fire or water.
3. Over charge and over discharge.
4. Punctured by spiculate things.
5. Extrude , fold or needling.
6. Short circuit.
7. Mix different capacity of batteries in one device or mixed the
old and new battery packs.
Shipping:
By sea: We have long term shipping partner and safety way to
ensurance the cargos can ship timely to your port.
By air: Our air shipping channels are always ready to serve you. We
got all our batteries passed the UN38.3 certificate
for air shipping.
FAQ:
1. Q:How long it will take to make a formal order?
A:Sale order normally 3-5days. Bulk orders will take 15-30days
according our cells stock situation.
2. Q:How to make the payment?
A:Bulk order need 30% deposit and can pay by west union or T/T to our USD account.
3. Q:What will be the packing for shipment?
A:Each pack have blister bags and one safety box. 24packs/ctn.
4. Q:What will be the quality insurance systerm?
A: In every pack we do the QA checking according our confirmed data
sheet which we will give you in advance.
And we will have a test report in each lot for your checking.
For more questions,please contact me freely, hope my 12 years
expenrience in battery area can help you:
